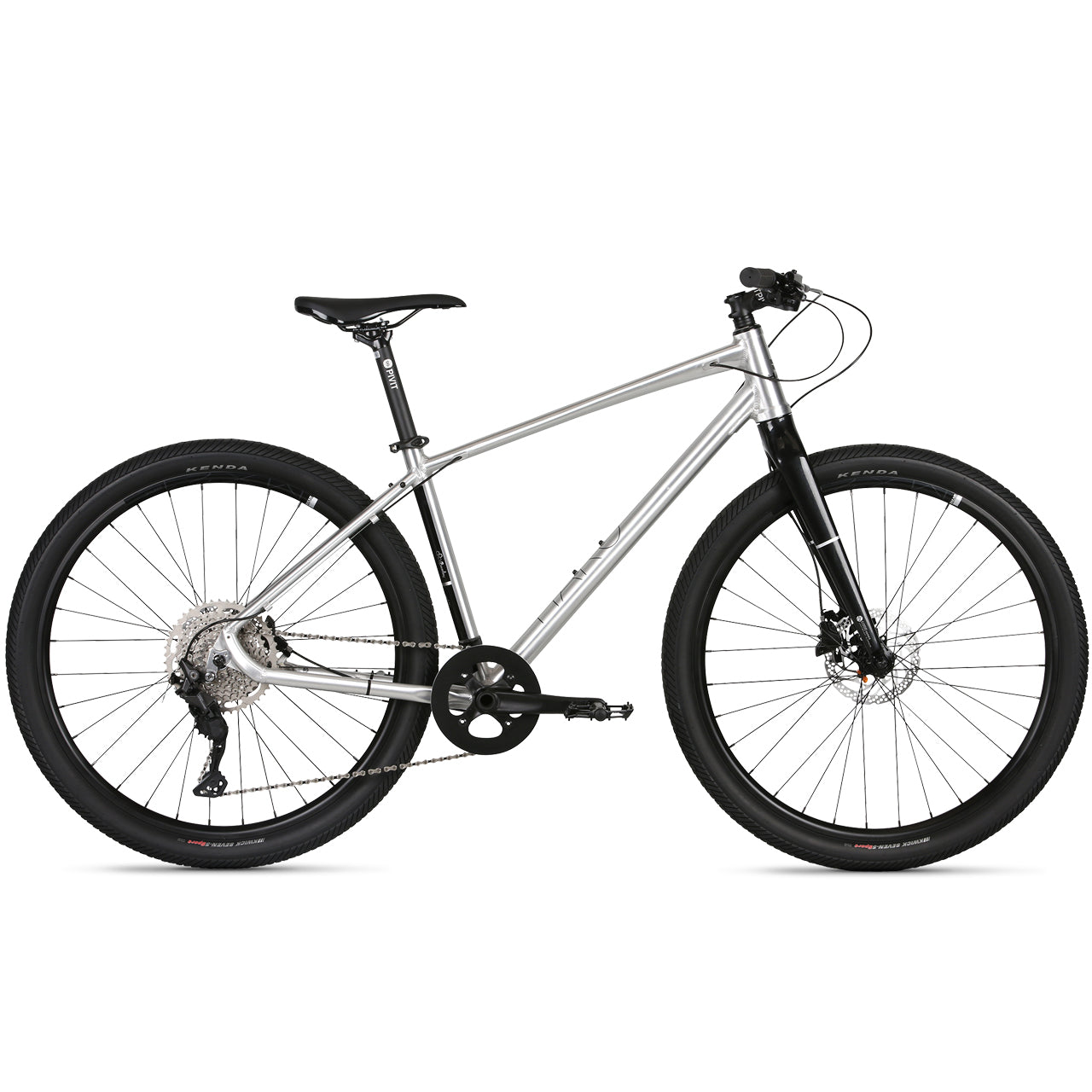

BEASLEY 27.5 DLX - Brushed Polished



Designer: Haro

$999.99

Actual retail price may vary based on any added dealer freight, tax, and assembly fees

Are you looking for a higher-end Urban model with hydraulic disc brakes and a dedicated 1x drive-train? From quick trips to local stores, to daily commutes to work, and all that urban life requires in between, the brand new Beasley 27.5" DLX delivers with an even more sophisticated feel for amazing rides in any urban environment. Features include new Shimano Deore 1x components that make shifting sharp with a wider capacity 10-speed cassette, Kenda Kwick 2.0 tires and Shimano hydraulic disc brakes, which ensure short braking distances in all weather conditions. In stark contrast to the regular Beasley 27.5, the DLX version features a shiny brush polished finish that makes it stand out as it should...

FEATURES

  • Haro Beasley 27.5" X6 series, tapered head tube
  • Internal FSA Threadless tapered headset
  • Rigid 27.5" 6000 Series tapered alloy fork
  • New 2-pc Aluminum crankset w/ 38T Narrow-Wide chainring
  • New Deore M5120 10-spd rear derailleur
  • New Deore M4100 10-spd right shifter
  • New Deore M4100 10-spd 11-46T cassette
  • MX-21 Aluminum double wall rims, 27mm wide
  • Shimano RM35 cassette 32h hubs
  • Kenda Kwick Seven.5 27.5x2.0" tires
  • Shimano MT201 hydraulic brakeset w/ 160mm rotors
SPECIFICATIONS
FRAMESET
FRAME Haro Beasley 27.5" | X6 Aluminum series | Chaintstay Post disc mount
FORK Rigid 27.5" 6061-T6 Aluminum Aluminum Tapered steer tube | IS Disc Mount | for integrated headset
COLORS Brush Polished
DRIVETRAIN
CRANKS Samox Aluminum 2-pc | 38T chainring Narrow-Wide Teeth | Aluminum chainguard | 170 / 175mm
PEDALS FPD Aluminum Platform | Chromoly axles | SBB Ball-Bearings
CHAIN KMC X10-1 NP/BLK | MTB 10-Spd | Missing Link
BOTTOM BRACKET Sealed cartridge
FRONT DERAILLEUR N/A
REAR DERAILLEUR New Shimano Deore RD-M5120 | 10-spd | Shadow Plus
DERAILLEUR SHIFTER New Shimano Deore SL-M4100-R 10-spd
FREEWHEEL/CASSETTE New Shimano Deore CS-M4100-10 | 10-spd | 11-46T
WHEELS
TIRES Kenda Kwick Seven.5 27.5x2.0" | Reflective stripes
WHEELS/RIMS MX-21 27mm Aluminum double wall rims
HUBS Shimano RM35 | cassette | 32h | Center-Lock discs
BRAKING SYSTEM
BRAKES Shimano BR-MT200 hydraulic | 160mm Center Lock Rotors
BRAKE LEVERS Shimano BL-MT201
OTHER COMPONENTS
GRIPS/TAPE Haro MTB
HANDLEBAR Pivit Aluminum 25mm rise | 31.8mm x 700 / 720mm
STEM Pivit Lightweight | 3D Forged | 31.8mm
HEADSET FSA NO. 57E ACB bottom | 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone
SADDLE Haro Flightline
SEAT POST Pivit Aluminum | 2 Bolts | micro adjust 30.9x350/400mm
SEAT CLAMP Pivit alloy 34.9mm | quick release
EXTRAS Chain-Drop Protector
Frame reference chart
GEOMETRY & SIZING
SIZE S / 15 M / 17 L / 19 XL / 21
A. SEAT TUBE (C-T) 381mm (15") 432mm (17") 483mm (19") 533mm (21")
B. TOP TUBE (EFFECTIVE) 570mm (22.4") 600mm (23.6") 610mm (24") 625mm (24.6")
C. HEAD TUBE ANGLE 71.5° 72° 72.5° 72.5°
D. SEAT TUBE ANGLE 73° 73° 73° 73°
E. CHAINSTAY LENGTH 428mm (16.9") 428mm (16.9") 428mm (16.9") 428mm (16.9")
F. BB DROP 65mm (2.6") 65mm (2.6") 65mm (2.6") 65mm (2.6")
G. WHEELBASE 1034mm (40.7") 1060mm (41.7") 1065mm (41.9") 1080mm (42.5")
H. HEAD TUBE LENGTH 120mm (4.7") 145mm (5.7") 170mm (6.7") 195mm (7.7")
I. STANDOVER 703mm (27.7") 736mm (29") 775mm (30.5") 813mm (32")
J. STACK HEIGHT 566mm (22.3") 592mm (23.3") 618mm (24.3") 642mm (25.3")
K. REACH 396mm (15.6") 418mm (16.5") 421mm (16.6") 428mm (16.9")
L. FORK HEIGHT 424mm (16.7") 424mm (16.7") 424mm (16.7") 424mm (16.7")
M. FORK OFFSET 45mm (1.8") 45mm (1.8") 45mm (1.8") 45mm (1.8")
N. STEM LENGTH 70 or 80mm 70 or 80mm 80mm 80mm
O. BAR WIDTH 680mm 680mm 700mm 700mm
P. CRANK LENGTH 170mm 175mm 175mm 175mm
