DOUBLE PEAK 29 TRAIL - Matte Black



Designer: Haro

Sold Out

Now Available!

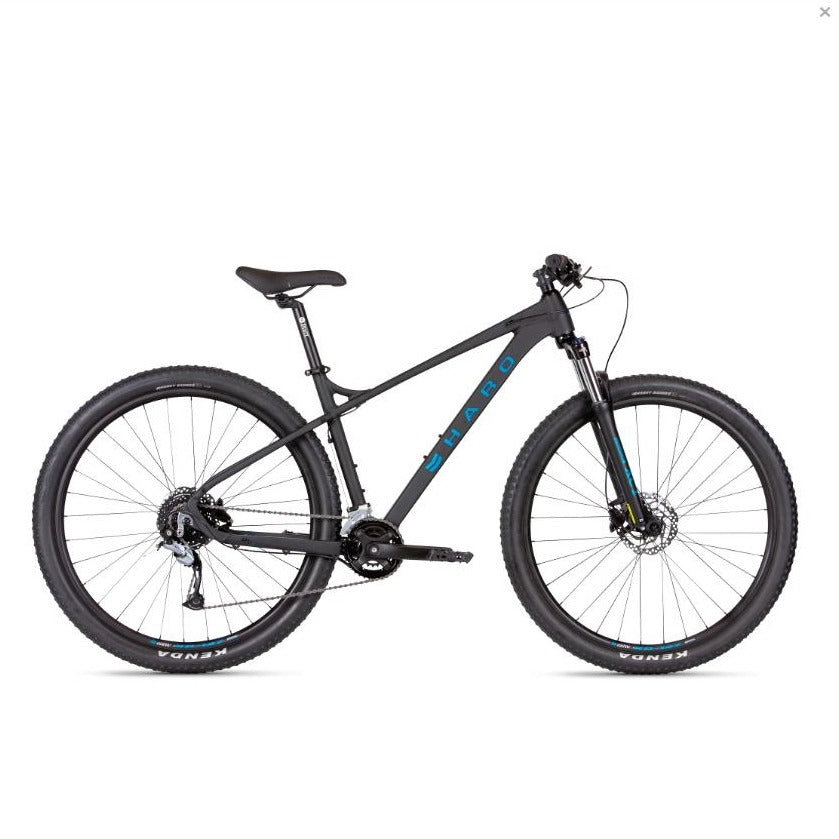

The 2021 Double Peak 29" Trail model features a brand new frame design, made from X6 series aluminum, with a low stand-over height for a low center of gravity and internal cable routing. The DP Trail model features a Shimano Alivio 2x9 drive train, versatile and capable of handling a wide variety of terrain. It glides along on 29" double wall rims, stainless spokes and Kenda Honey Badger XC 2.2" tires. The front end features a Suntour XCT-30 100mm fork with hydraulic lockout. The Trail appreciates speed, but it can stop on a dime thanks to its Shimano MT-200 Hydraulic disc brakes.

FEATURES

  • New Double Peak X6 Series frame w/ tapered head tube
  • Suntour XCT-30 HLO 100mm travel fork
  • Aluminum crankset, 36/22T, 2x9
  • Altus M2020-M front derailleur
  • New Alivio M3100 SGS 9-spd rear derailleur
  • Shimano Altus SL-M2010-2L shifters
  • Shimano HG-200 9-spd 11-36T cassette
  • MX-21 29"x27mm Aluminum DW rims
  • Shimano MT-200 hydraulic disc brakeset, Center Lock
SPECIFICATIONS
FRAMESET
FRAME NEW 2021 HARO DOUBLE PEAK 29" X6 ALUMINUM SERIES | TAPERED HEAD TUBE | INTERNAL HOUSING ROUTING | CHAINSTAY DISC BRAKE MOUNT | 73MM THREADED BSA
FORK SR SUNTOUR XCT-30 | 29X100MM TRAVEL | HYDRAULIC LOCKOUT
COLORS Matte Black
DRIVETRAIN
CRANKS Shimano MT-101 | 36/22T | 2x9-Spd
PEDALS FPD Nylon body | Chromoly axles | Platform
CHAIN KMC Z9 9-spd
BOTTOM BRACKET Shimano Sealed cartridge
FRONT DERAILLEUR Shimano Altus | FD-M2020 | 2x9-spd | Top Swing
REAR DERAILLEUR New Alivio M3100 SGS 9-spd | Shadow design
DERAILLEUR SHIFTER New Shimano SL-M2010-2L | 2x9-spd
FREEWHEEL/CASSETTE Shimano HG-200 9-spd 11-36T
WHEELS
TIRES Kenda Honey Badger XC 29.0*2.2
WHEELS/RIMS MX-21 29"x27mm Aluminum double wall
HUBS Shimano TX-505 alloy | Center Lock Disc | cassette 32h
BRAKING SYSTEM
BRAKES Shimano BR-MT200 hydraulic | 160mm Center Lock Rotors
BRAKE LEVERS Shimano BL-MT200
OTHER COMPONENTS
GRIPS/TAPE WTB Trail II
HANDLEBAR Pivit aluminum | 15mm riser bar | 31.8mm
STEM Pivit forged stem
HEADSET 1-1/8"-1.5" Threadless for 50/62mm OD headtube | 10.0mm Aluminum top cover
SADDLE New Haro Double Peak
SEAT POST Pivit aluminum micro adjust 31.6mm
SEAT CLAMP Pivit aluminum 34.9mm quick release
EXTRAS Internal housing routing
Frame reference chart
GEOMETRY & SIZING
SIZE S M L XL
A. SEAT TUBE (C-T) 406mm (16") 432mm (17") 483mm (19") 533mm (21")
B. TOP TUBE (EFFECTIVE) 593mm (23.3") 618mm (24.3") 639mm (25.2") 657mm (25.9")
C. HEAD TUBE ANGLE 67° 67° 67° 67°
D. SEAT TUBE ANGLE 72.5° 72.5° 72.5° 72.5°
E. CHAINSTAY LENGTH 450mm (17.7") 450mm (17.7") 450mm (17.7") 450mm (17.7")
F. BB DROP 63mm (2.5") 63mm (2.5") 63mm (2.5") 63mm (2.5")
G. WHEELBASE 1165mm (45.9") 1190mm (46.9") 1212mm (47.7") 1231mm (48.5")
H. HEAD TUBE LENGTH 100mm (3.9") 100mm (3.9") 105mm (4.1") 115mm (4.5")
I. STANDOVER 738mm (29.1") 741mm (29.2") 751mm (29.6") 774mm (30.5")
J. STACK HEIGHT 626mm (24.6") 626mm (24.6") 630mm (24.8") 640mm (25.2")
K. REACH 425mm (16.7") 450mm (17.7") 470mm (18.5") 485mm (19.1")
L. FORK HEIGHT mm (") mm (") mm (") mm (")
M. FORK OFFSET 51mm (2") 51mm (2") 51mm (2") 51mm (2")
N. STEM LENGTH 60mm 60mm 60mm 60mm
O. BAR WIDTH 700mm 700mm 700mm 700mm
P. CRANK LENGTH 170mm 175mm 175mm 175mm
